Panasonic Concealed Insert Series



  • Excellent material, finely polished
  • Smooth operation, no noise, durable, easy to install
  • Can be widely used in various wooden doors and metal doors


Material

The main hardware is all made of 304 stainless steel or 59 copper

design

Based on the design principles of elegance, fashion, simplicity and grandeur, it
meets the needs of most commercial users and has excellent quality.

Craft

Combining traditional processing and modern CNC finishing technology to
provide users with more beautiful, safer and more environmentally friendly products.

installation

Pursue simplicity, sturdiness, durability, maintenance-free, less maintenance, and
minimize the trouble of users during installation and use.



Concealed plug, Panasonic Concealed plug Shanghai general agent -021-68568185-Panasonic Concealed plug designated dealer

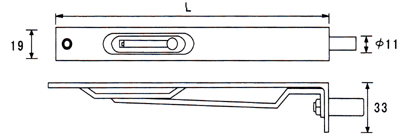

AC-001T

Panasonic concealed plug AC-001T

Functions and features

Suitable for double-leaf doors or double door
spring plate interposed dark

Technical Parameters

Length: 6",8",10",12"

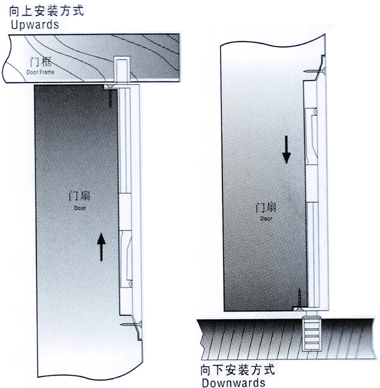

Installation method

Slotting, screw installation

Material/surface treatment

Copper polished Panasonic hidden plugCopper sanded Panasonic hidden plugCopper polished chrome*Panasonic hidden plug

Panasonic hidden plug



Concealed plug, Panasonic Concealed plug Shanghai general agent -021-68568185-Panasonic Concealed plug designated dealer

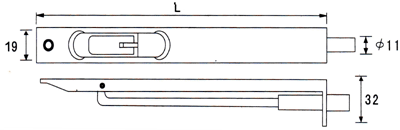

AC-001B

Panasonic concealed plug AC-001B

Functions and features

Suitable for double-leaf doors or double door
push dark plug

Technical Parameters

Length: 6",8",10",12"

Installation method

Slotting, screw installation

Material/surface treatment

Stainless steel sanding* Panasonic hidden plugStainless steel polishing Panasonic hidden plugBrushed goldPanasonic hidden plug

Panasonic hidden plug



Concealed plug, Panasonic Concealed plug Shanghai general agent -021-68568185-Panasonic Concealed plug designated dealer

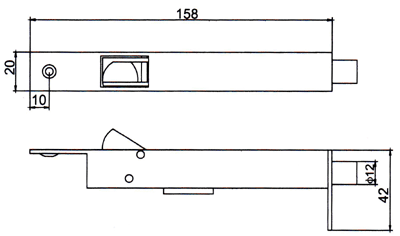

AC-002B

Panasonic concealed plug AC-002B

Functions and features

Suitable for double-leaf door or double-door
double door automatic concealed insertion
double left and right

Technical Parameters

Length: 6"

Installation method

Slotting, screw installation

Material/surface treatment

Stainless steel sanding * Panasonic hidden plugstainless steel polishingPanasonic hidden plug

Panasonic hidden plug



Concealed plug, Panasonic Concealed plug Shanghai general agent -021-68568185-Panasonic Concealed plug designated dealer

Panasonic concealed plug designated dealer, Panasonic concealed plug Shanghai general agentPanasonic hidden plug
